Spotlight · Koala Living · 2 of 4Koala Living, Mile End
Ninety-two suspended tracks and forty-one chandeliers, delivered interstate.
- Location
- Mile End, Adelaide
- Sector
- Retail showroom
- Role
- Electrical, lighting, data and CCTV fit-out
- Status
- Completed 2026
Overview
Koala Living's Mile End showroom sits in the Mile End Home Co centre in Adelaide, a wide warehouse floor renovated into the company's sequence of arched, furnished rooms. ATAS delivered the electrical package, the second store in the program after Moore Park and the first outside Sydney.

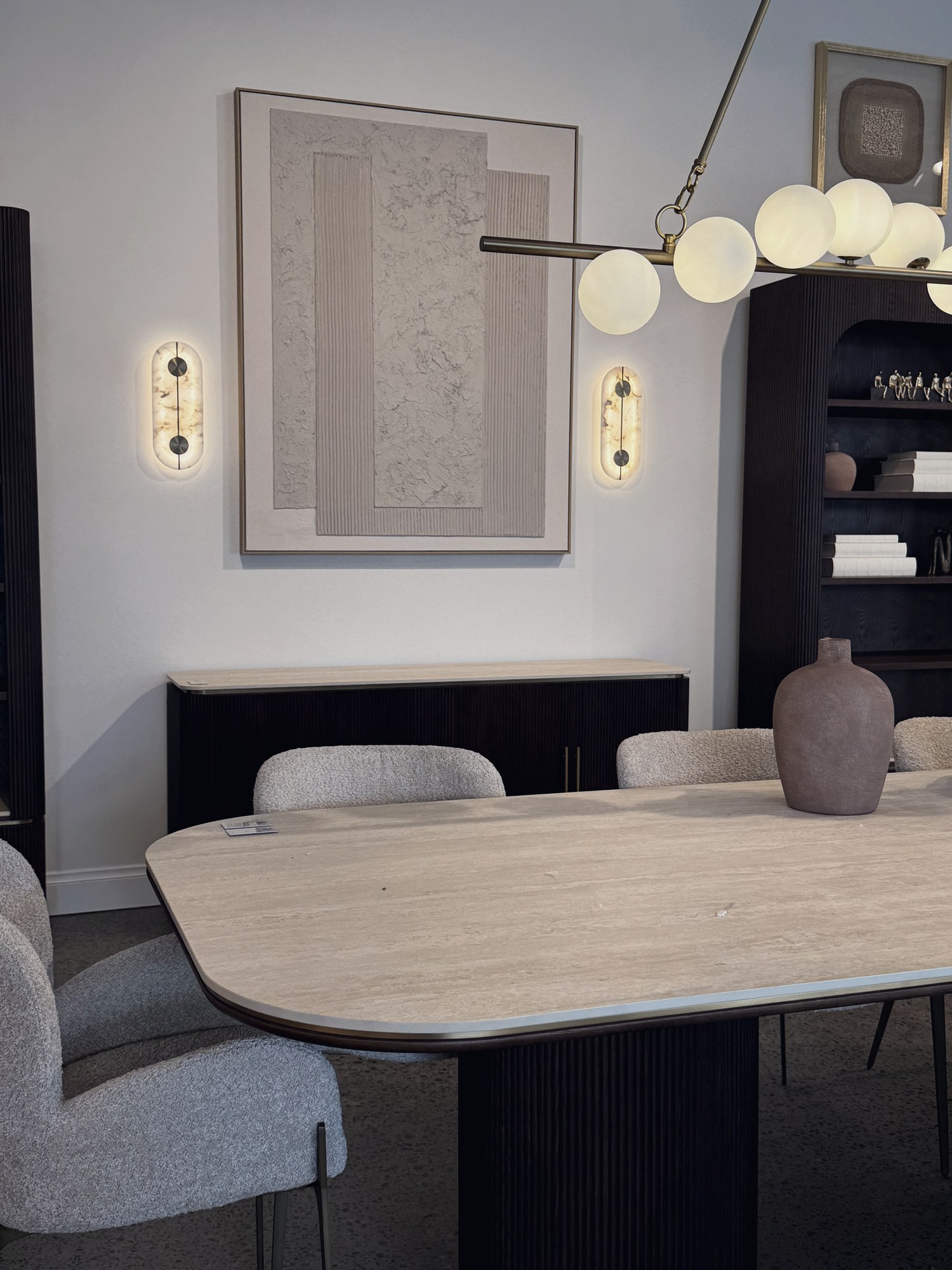

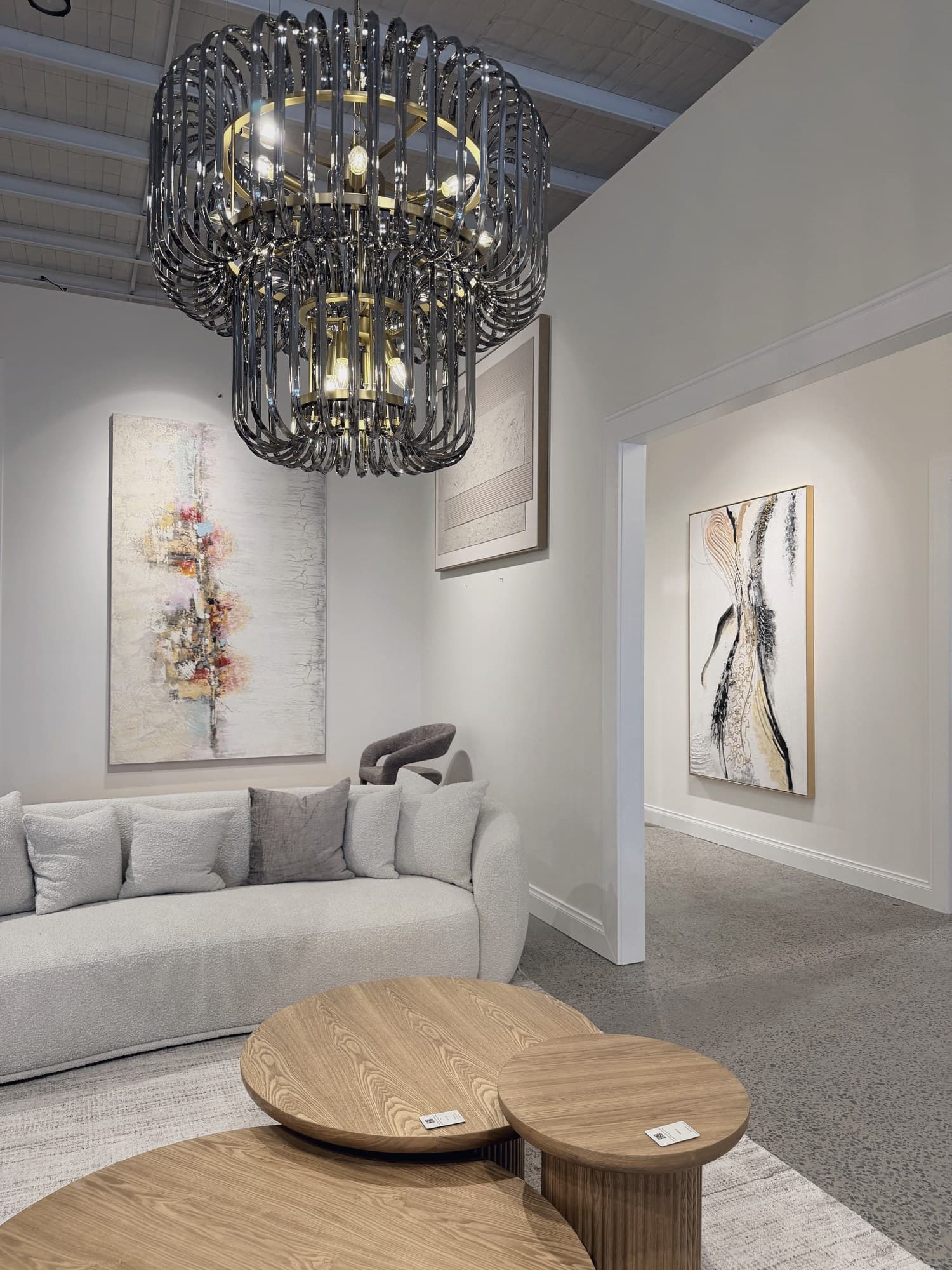

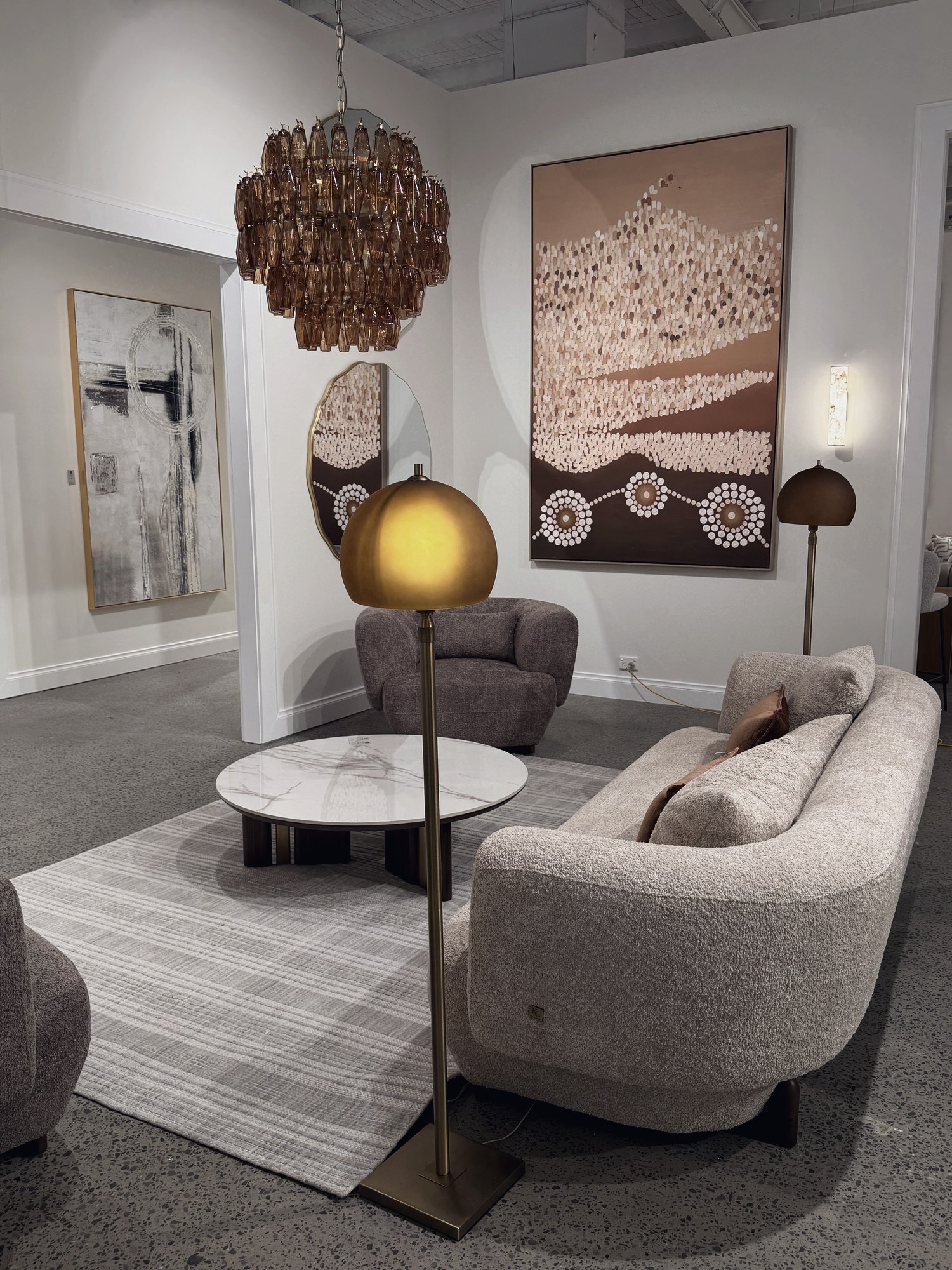

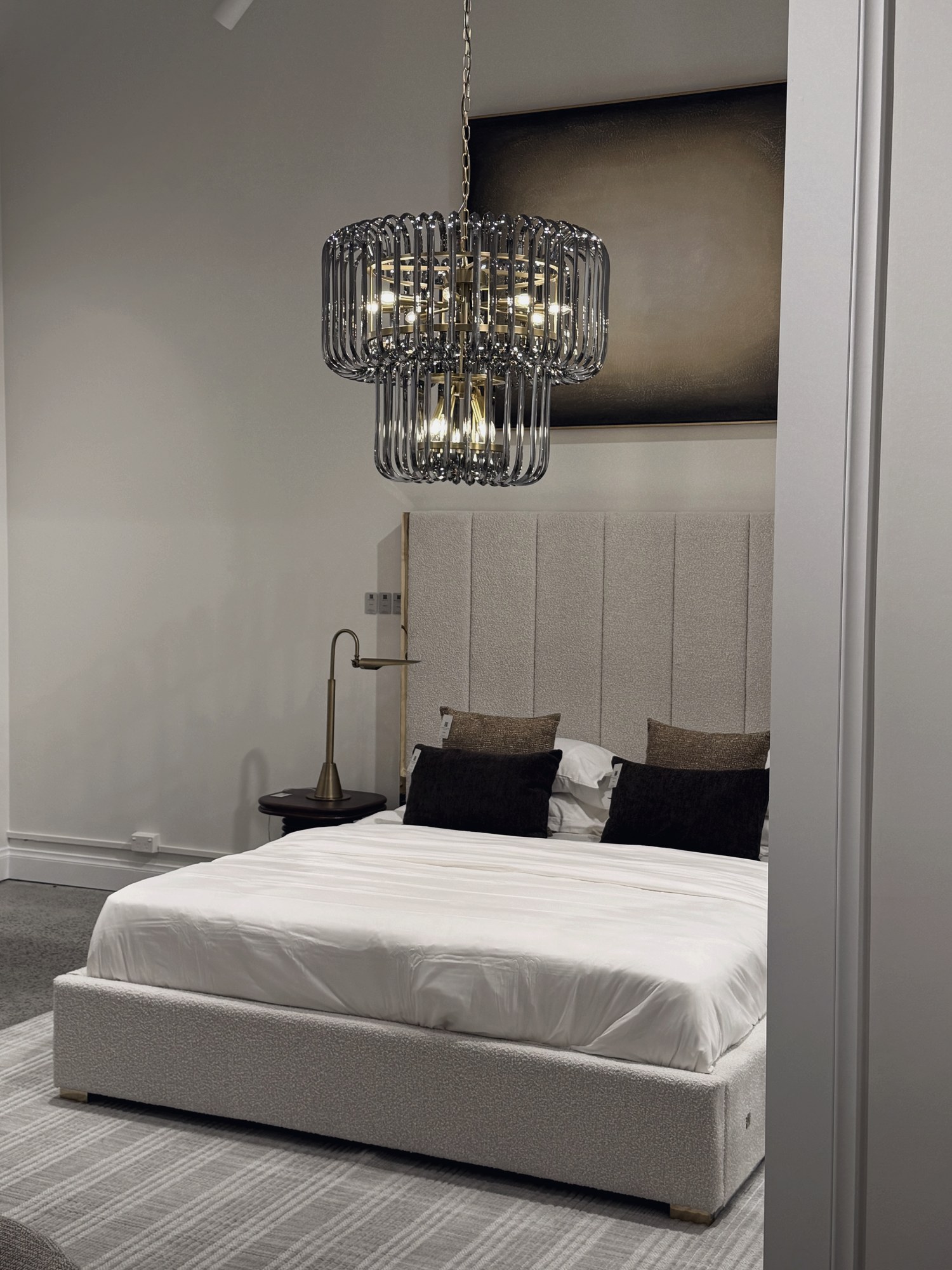

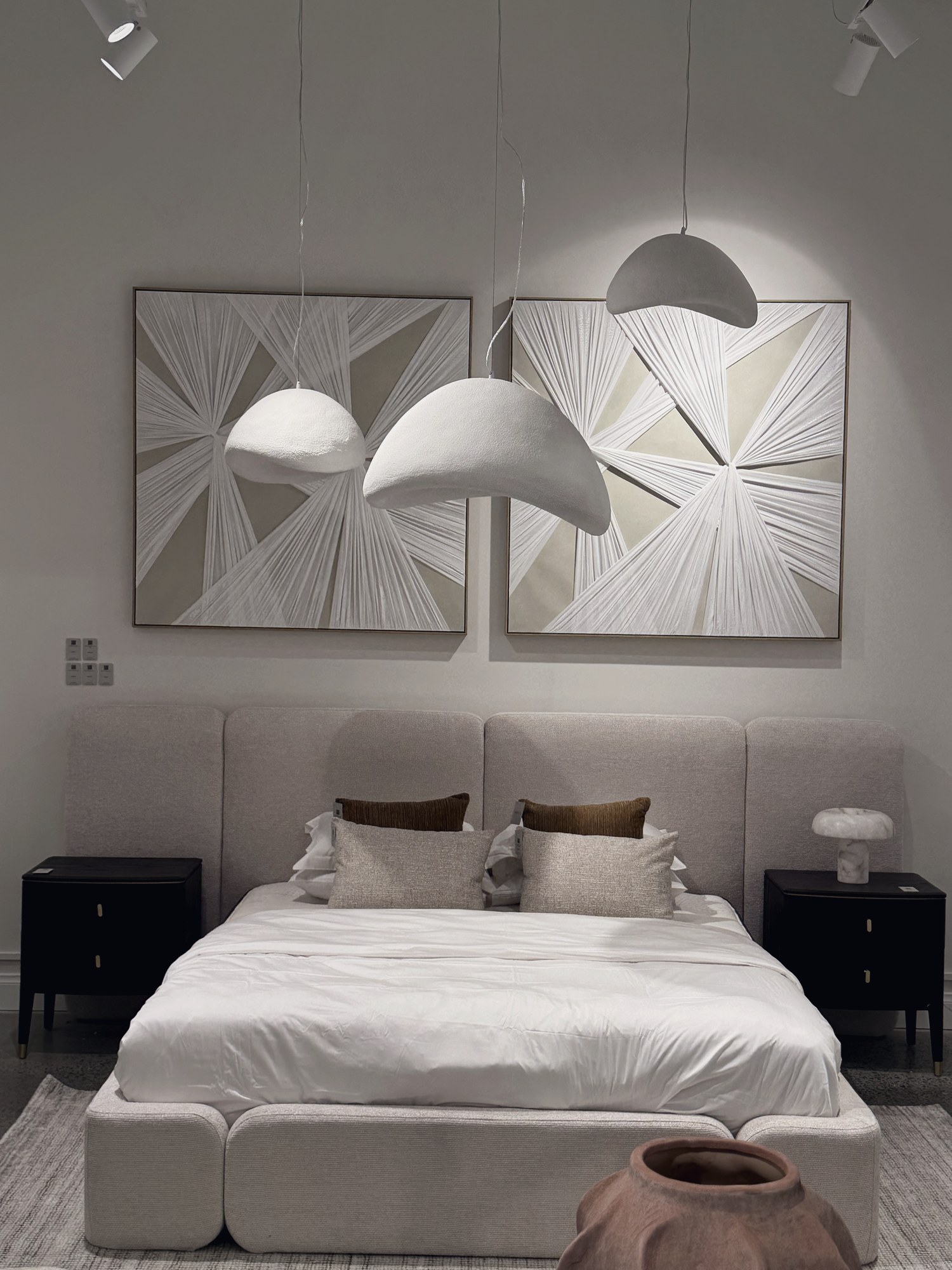

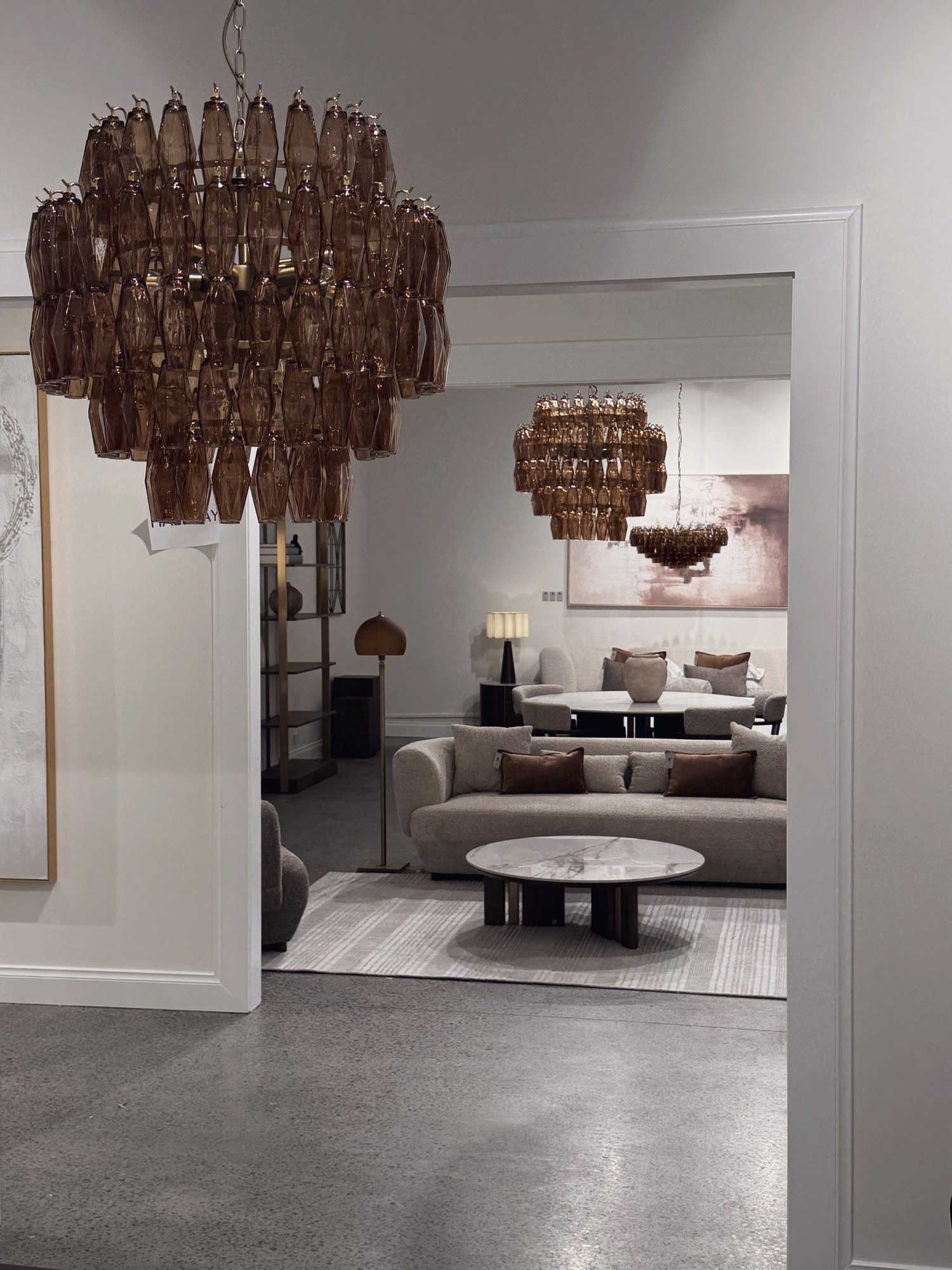

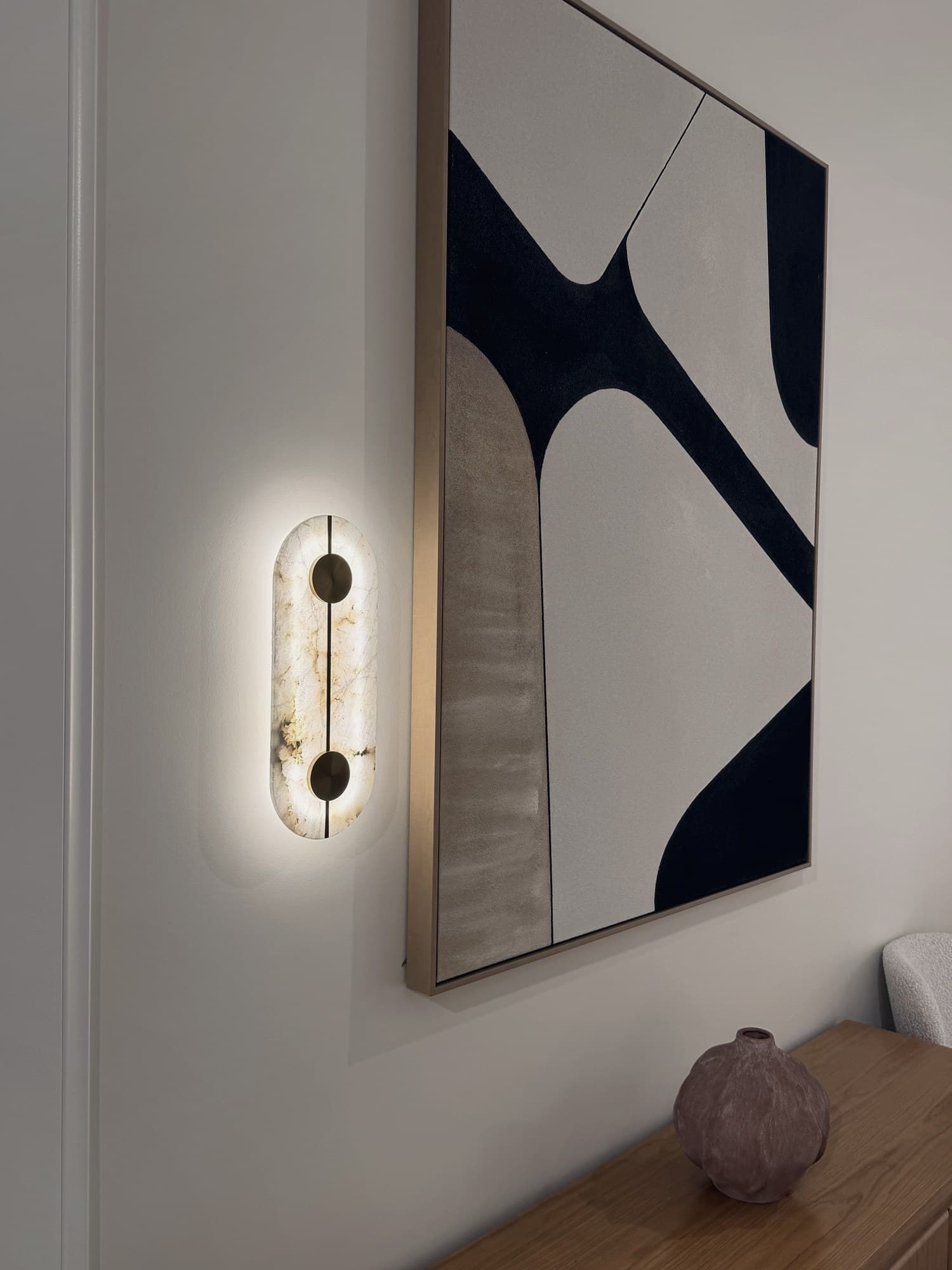

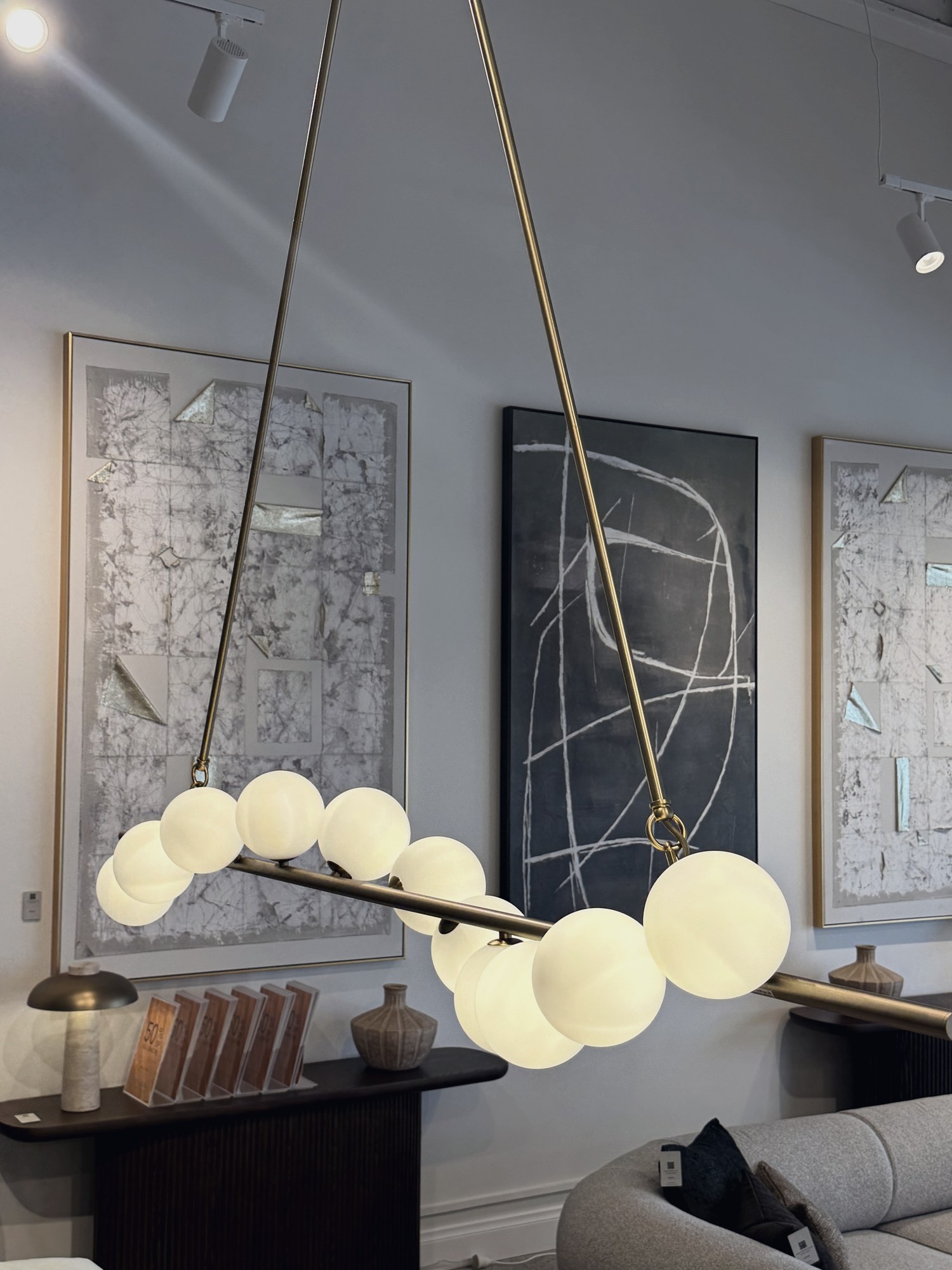

Ninety-two tracks were suspended on stainless wire rope to a top-of-track height of 3600mm, set out to the showroom's rules, lamped and aimed during fit-off. Forty-one chandeliers and thirty-two wall lights were hung to scheduled heights, with junction boxes left at ten picture-light positions for fittings arriving later. Store lighting runs in four zones with two switchboard timers for the tracks and the signage. Eighty-four double outlets, data and WiFi, six CCTV cameras, sixteen speakers, two illuminated shopfront signs and four exit signs completed the package, certified at handover.
DeliverablesCertificate of Compliance, test results and as-builts
Electrical scope
- 92 suspended ceiling tracks on wire rope, set out and aimed
- 41 chandeliers and 32 wall lights, picture-light provisions
- Four-zone lighting control with switchboard timers
- 84 double outlets and staff room services

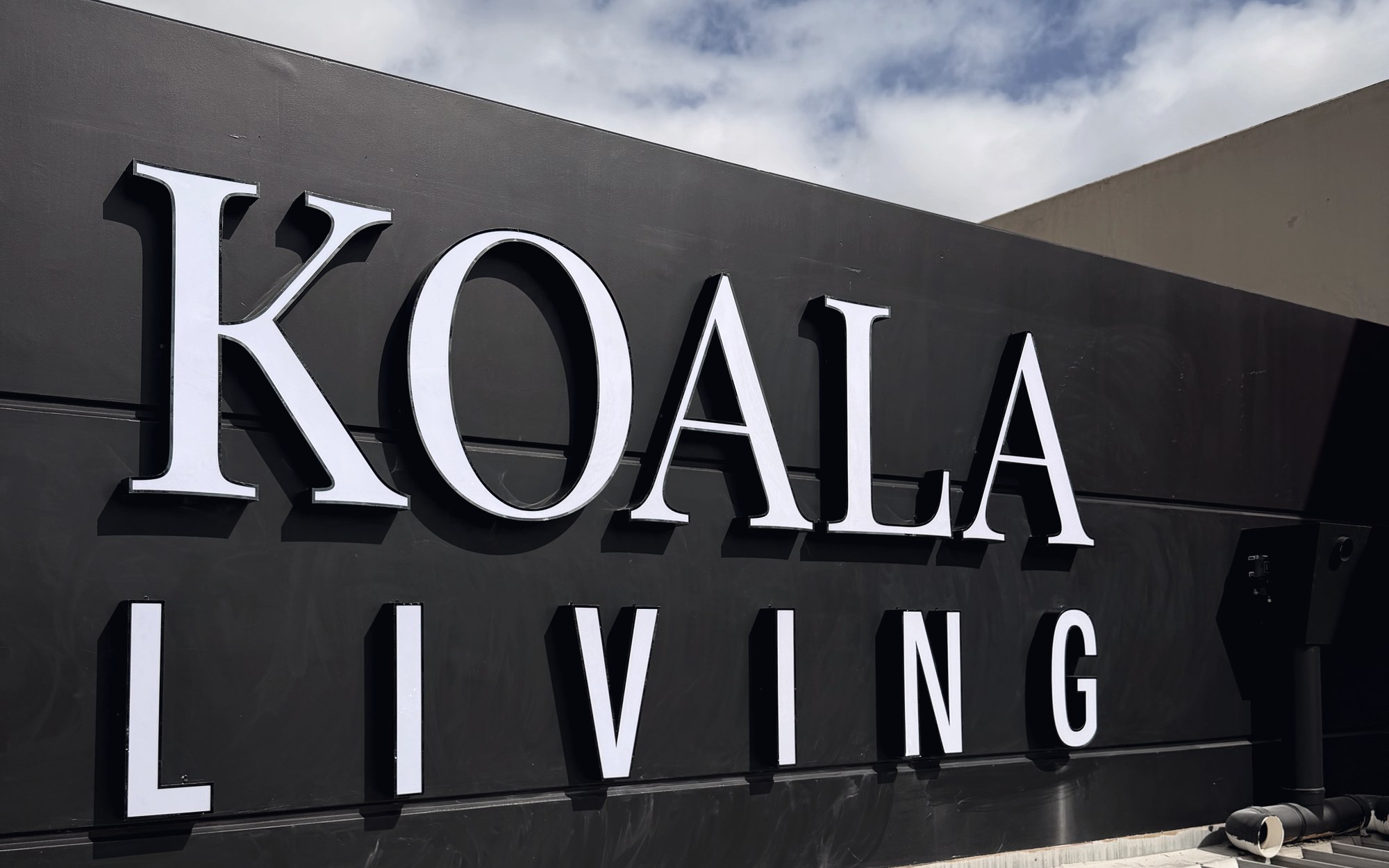

- Two illuminated shopfront signs and lightbox
- Six-camera IP CCTV, Cat6 data and WiFi
- 16 speakers and PA commissioning
- Four emergency exit signs
- Distribution, testing and Certificate of Compliance
